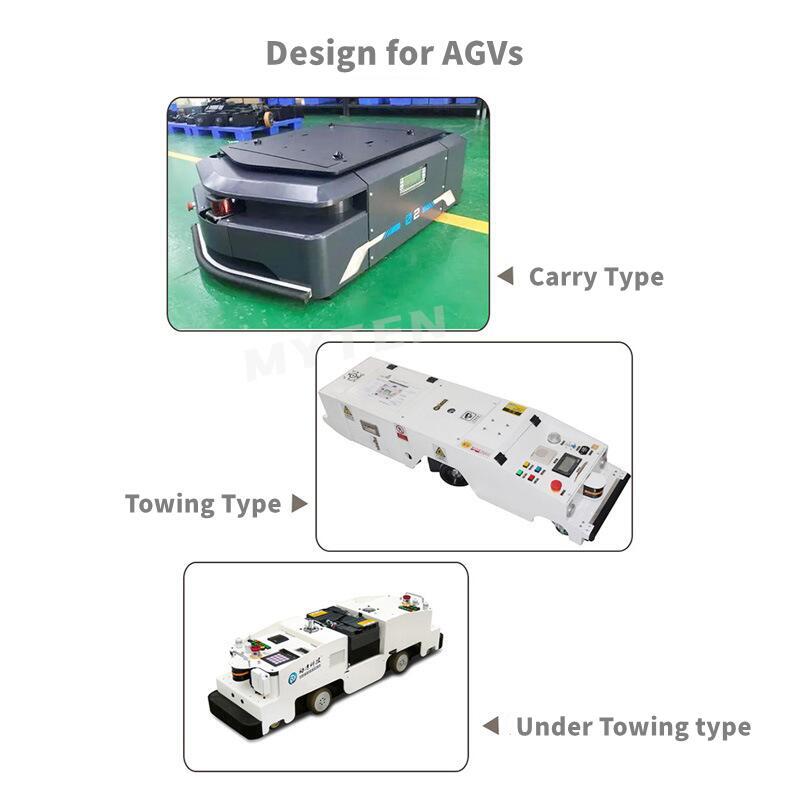

48V 60Ah Lithium Battery Set for AGV Power Fast Charge for AGV

Model: MTIA-48V60AH-A2C

Battery Type: MnNiCo ternary battery

Rated Voltage: 48V (Other voltage optional)

Rated Capacity: 60Ah (Other capacity optional)

Max. Voltage: 54.0V±1.0V

Min. Voltage: 38.0V±1.0V

Constant Working Current: ≤60A

Max. Instantaneous Current: 100A

Communication Mode: RS485 ( Circular Connector)

Weak Electricity Switch: Yes (Control outlet on/off)

Shell type: Waterproof metal shell

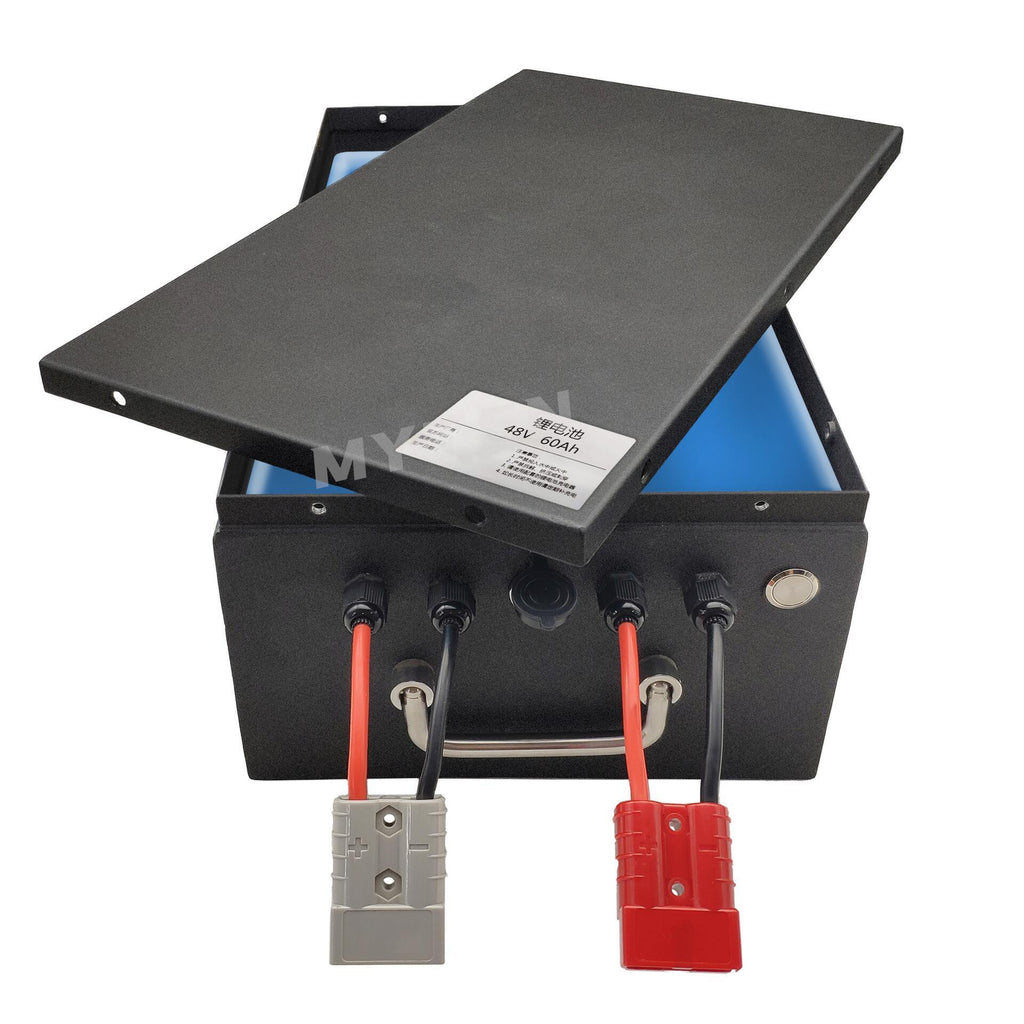

Socket type: Anderson

Features:

Design for low temperature:

Temp. range when charge: 0 to 45℃ (32 to 113℉)

Temp. range when discharge:-35 to 60℃ (-31to 60℉)

Fast charge:

Charge mode: Constant current and voltage (CC-CV)

Charge curent: ≤50A (Fast charge)

Charge time: ±80% charged in 1h

Multiple protections:

Protections on Over charge / Over discharge / Over current / Over heat / Short circuit

Stable charging / SOC / Error diagnostic
