HMI TouchScreen 4-15 inches windows CE system for AGV
HMI TouchScreen 4-15 inches windows CE system for AGV
HMI TouchScreen 4-15 inches windows CE system for AGV

HMI TouchScreen 4-15 inches windows CE system for AGV

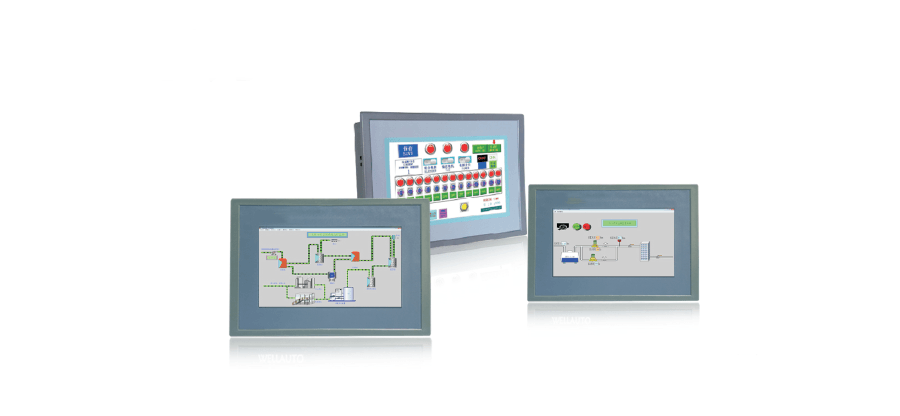

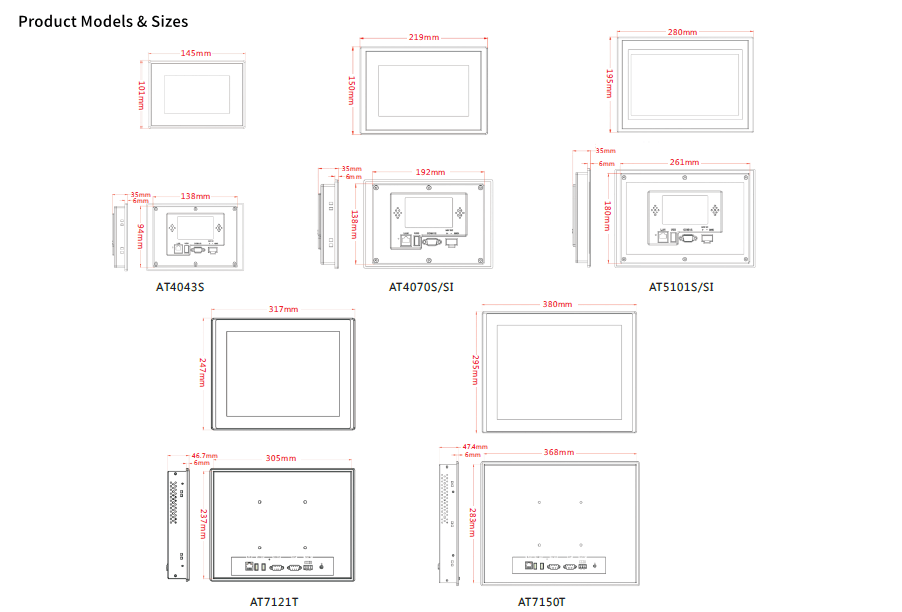

The AT series HMI touchscreens are based on windows CE system, including five sizes of screen,  4.3, 7.0, 10.2, 12.1, 15.0 inches. It has configuration software called Wellview Builder, which is flexible, multifunctional and easy-to-use, and it brings you better visual feedback and user’s experience.



Features：

  1. Highly reliable, with industrial design level, it works stably under harsh environment.
  2. High configuration and hardware performance. It has A8 platform, mass memory storage and multiple communication interfaces.
  3. Clear displaying. 16:9 wide screen, 260K true color, high resolution.
  4. Easy installation. Compatible with other brandy HMI on installation holes, easy to install and replace.
  5. Support USB flash memory download, Ethernet, CAN communication, C language script.





Functions:





[Performance]

ARM 9 processor, up to 400mHz.

Build-in mass storage memory, no data lost when power off.

USB flash memory storage available.

16:9 widescreen high resolution display.

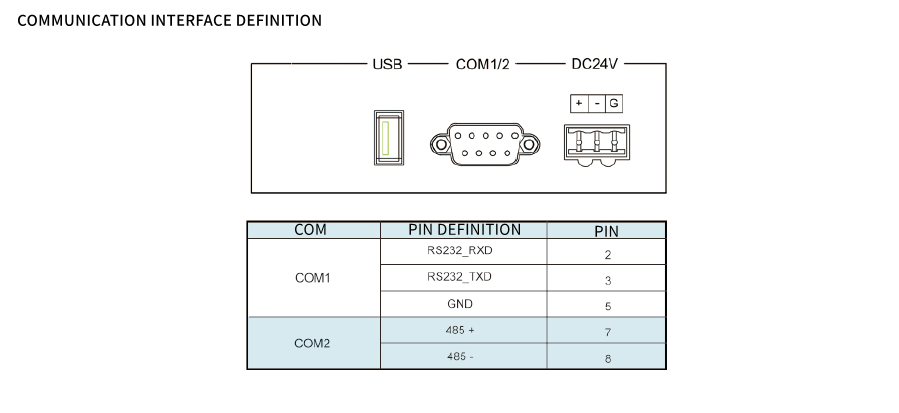

[Multiple Communication Interface]

Build-in COM with RS232/485.

One COM or a COM/an RJ45 Ethernet interface.

10M/100M self-adaptive network interface card.

Communicate with up to 32 PLC devices by RS485.



[Multiple Fonts and Languages]

Supports 5 languages and fonts.

Support TRUE TYPE (TTF) fonts.

Support Unicode, international standard.

Support serial network communication.



[Macro Command Programming]

C language script.

User-defined function library setting, free-inferface communication protocol.

Mathematical calculating function of C standard,user- familiar interface.

Multiple executing modes.



[Rich Image Gallery]

Provide rich images for all industries.

Support customized vector images, editable.

Support BMP, JPG and other formats.

Provide standard normal vector image frame.



[Subgroups]

Slide to input value.

Pull-down menu for items to choose.

Multiple trend graphs displaying.



[Other Functions]

Connect PLC with PC directly to simulate configuration engineering for data collection from PLC.

All new code system makes it safer and more reliable.

Support USB flash drive plug-in for updating.

Audio alert extendible, real-time status loudspeaking.
