MT-RFOB125 RFID Tag Reader AGV Card Reader On-board RFID reader 125KHz EMID FDX-8

Product Introduction:

MT-RFOB125 is a reading sensor of RFID tag in low frequency based on Radio Frequency Identification Technology, its working frequency is 125 KHz, and it supports reading tags of EMID and FDX-B format. The sensor integrates partly of communication protocols of radio frequency, which makes tags reading available only by data receive with RS232 communication, so the users don’t need to learn complicated radio frequency communication protocols.

The sensor has auto-tuning circuit that can adjust circuit parameter automatically in different situations, which ensures the most stable performance of tag reading at different environment, increases its anti-interference ability. It has high sensitivity, stable performance and good durability.

This sensor can be applied in logistics, warehouse management, process control and AGV station control.

Features:

Working Voltage: 10-30 V

Power:2W

Circuit Protection: Protection of wrong pole connection

Working Frequency: 125 KHz

Tag Reading Distance: 15cm (Varied on tag type and application environment)

Supported Tags Type: FDX-B, EMID

Communication Port: RS232/RS485, ModBus RS232/RS485

Working Humidity: 10-90% RH

Working Temperature: -25℃ to +85℃ (-13℉ to +185℉)

Level of Protection：IP 65

Material of Shell: ABS Engineering plastic

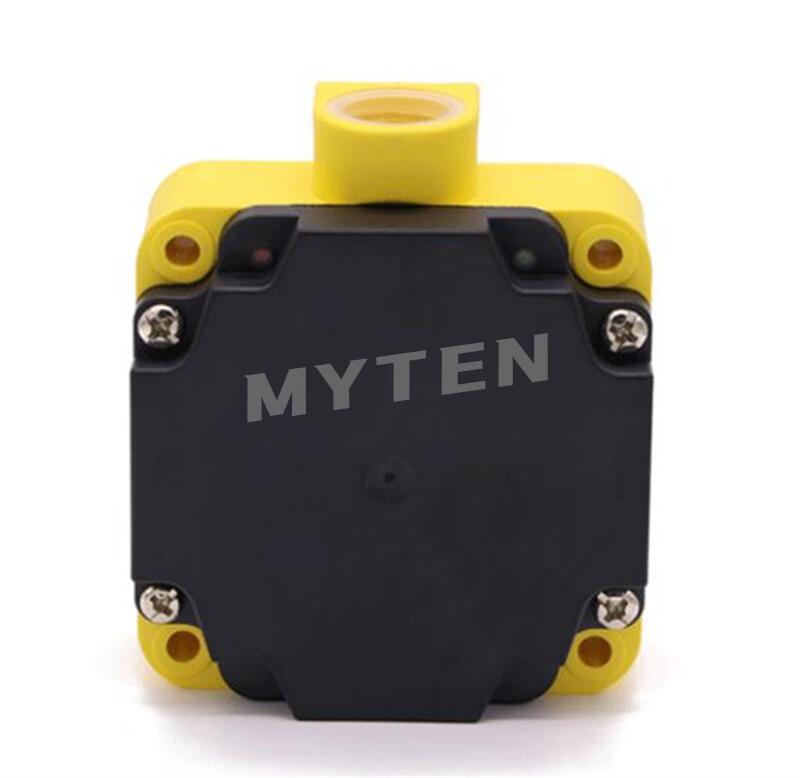

Signal Light Indicator:

Red Led: Power-on Indicator

Green Led: Sensor status for tag detection

When sensor connects with power, Red LED on, sensor enters into auto tuning status and tunes itself automatically according to working environment.

When sensor detects RFID tag, LED light on after decoding successfully, meanwhile it transfers data to receiver by RS232 port.
