TOF Measure Type Laser Sensor AGV Guidance Sensor Radar PAVO
TOF Measure Type Laser Sensor AGV Guidance Sensor Radar PAVO
TOF Measure Type Laser Sensor AGV Guidance Sensor Radar PAVO
TOF Measure Type Laser Sensor AGV Guidance Sensor Radar PAVO
TOF Measure Type Laser Sensor AGV Guidance Sensor Radar PAVO
TOF Measure Type Laser Sensor AGV Guidance Sensor Radar PAVO

TOF Measure Type Laser Sensor AGV Guidance Sensor Radar PAVO

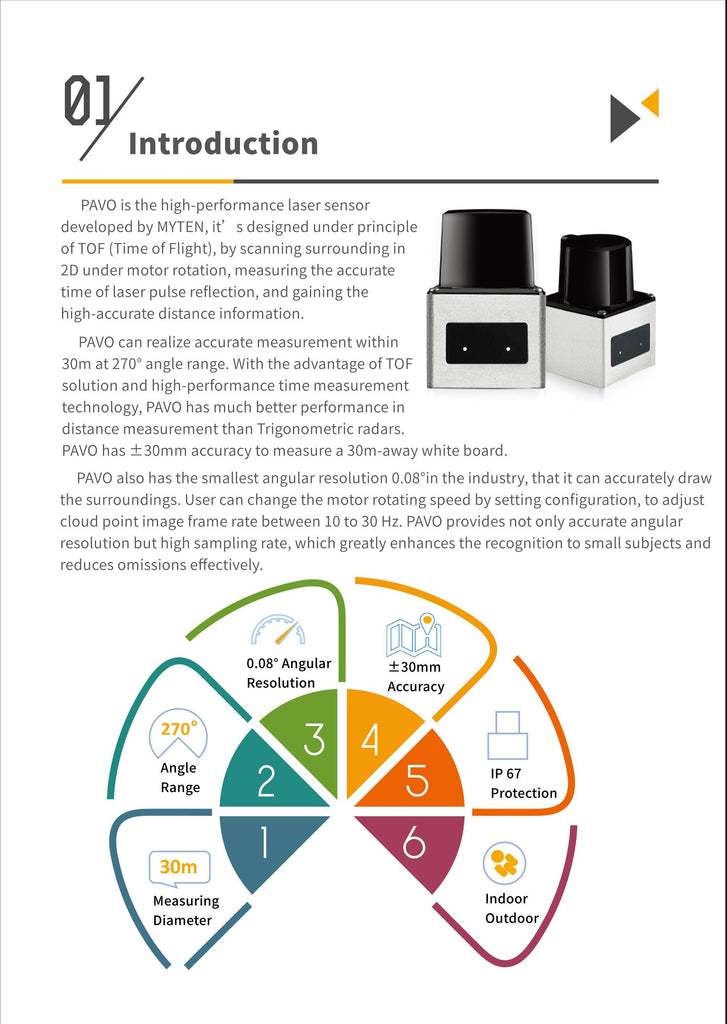

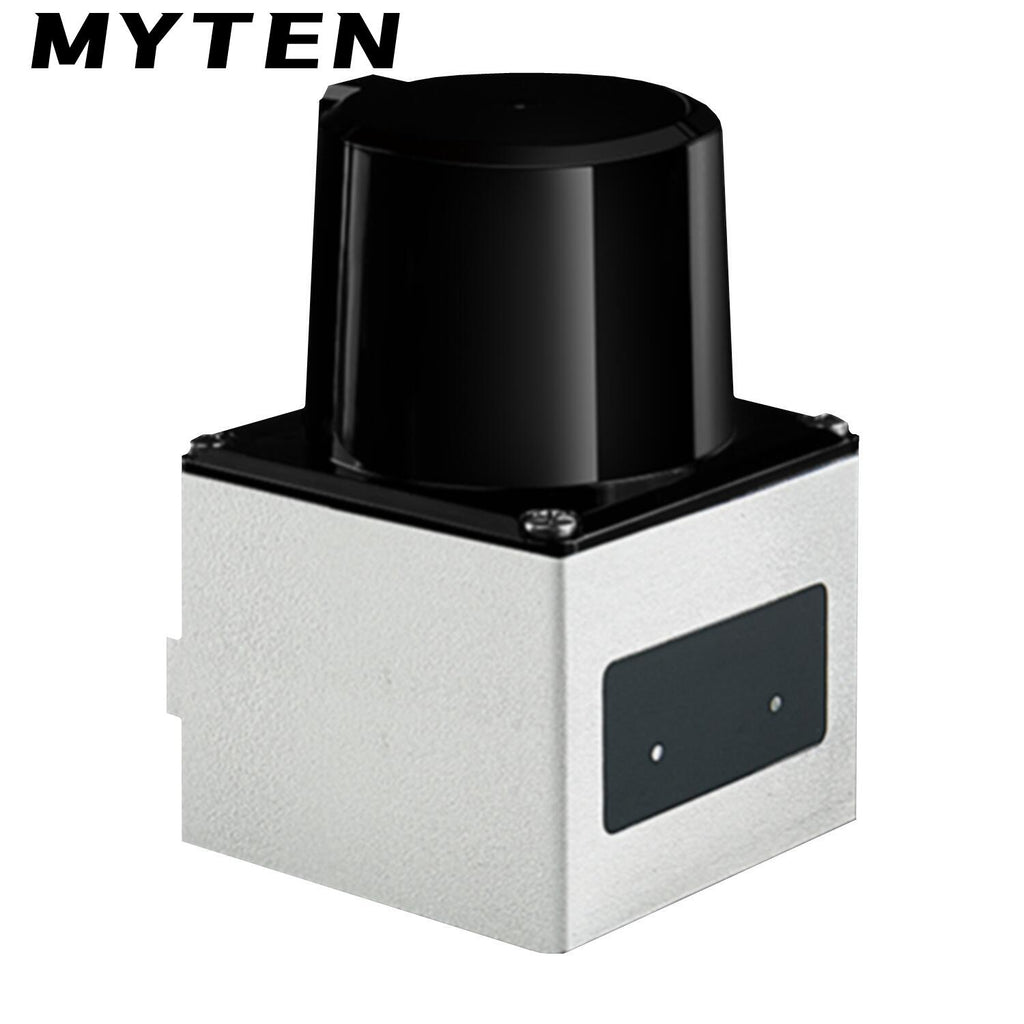

PAVO is the high-performance laser sensor developed by MYTEN, it’s designed under principle of TOF (Time of Flight), by scanning surrounding in 2D under motor rotation, measuring the accurate time of laser pulse reflection, and gaining the high-accurate distance information.



PAVO can realize accurate measurement within 30m at 270° angle range. With the advantage of TOF solution and high-performance time measurement technology, PAVO has much better performance in distance measurement than Trigonometric radars. PAVO has ±30mm accuracy to measure a 30m-away white board.



PAVO also has the smallest angular resolution 0.08°in the industry, that it can accurately draw the surroundings. User can change the motor rotating speed by setting configuration, to adjust cloud point image frame rate between 10 to 30 Hz. PAVO provides not only accurate angular resolution but high sampling rate, which greatly enhances the recognition to small subjects and reduces omissions effectively.
